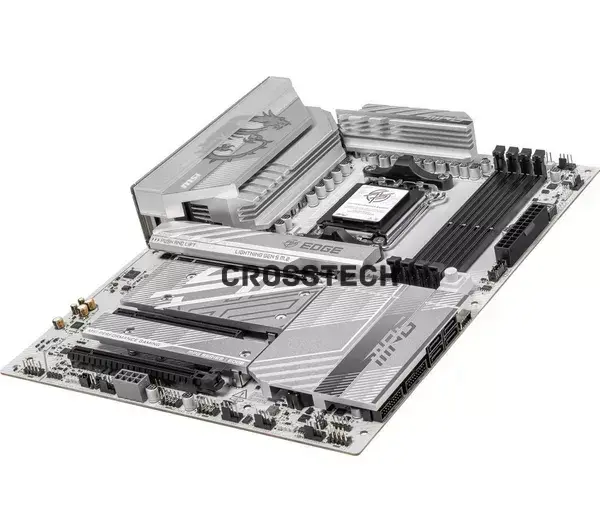

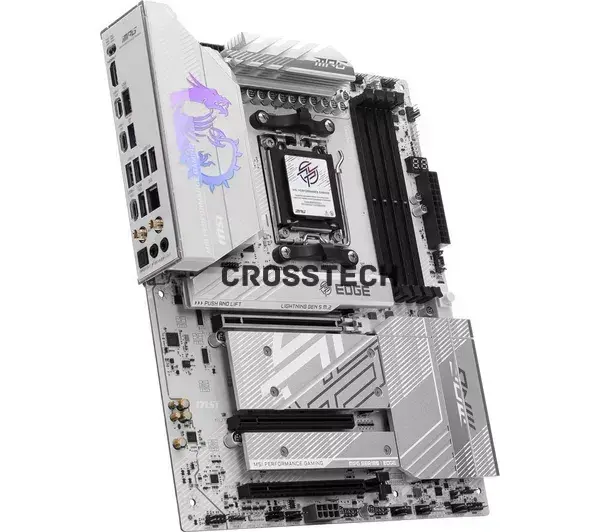

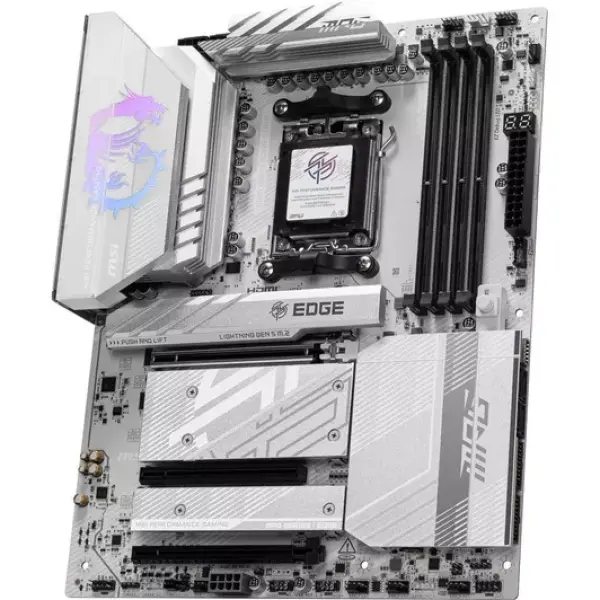

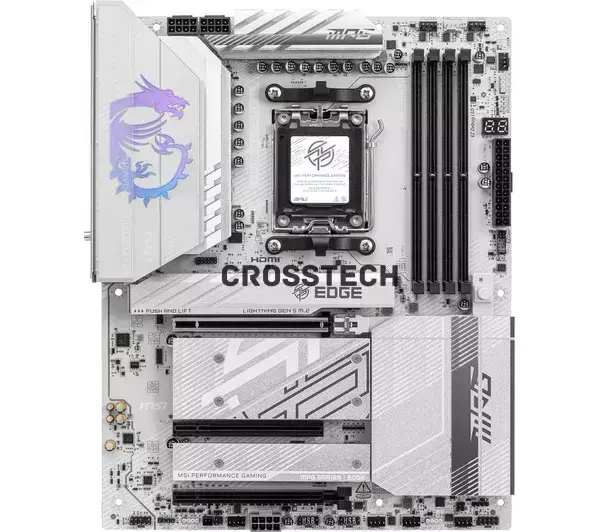

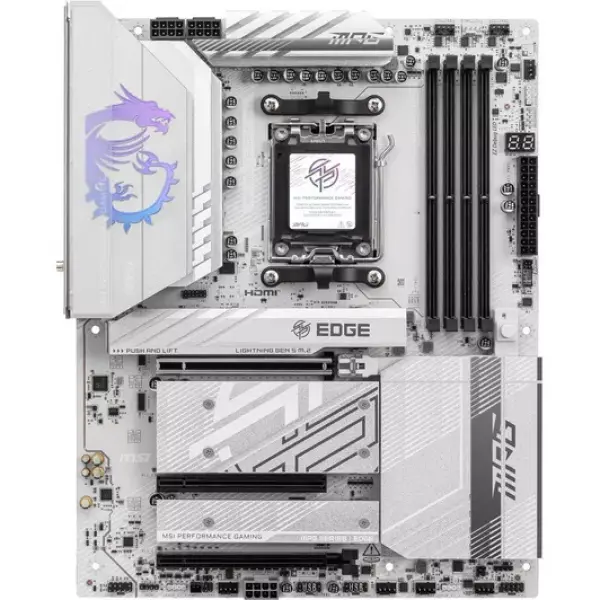

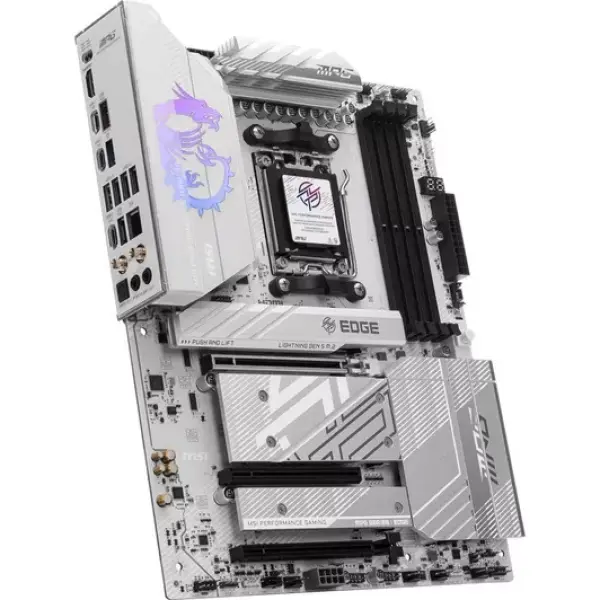

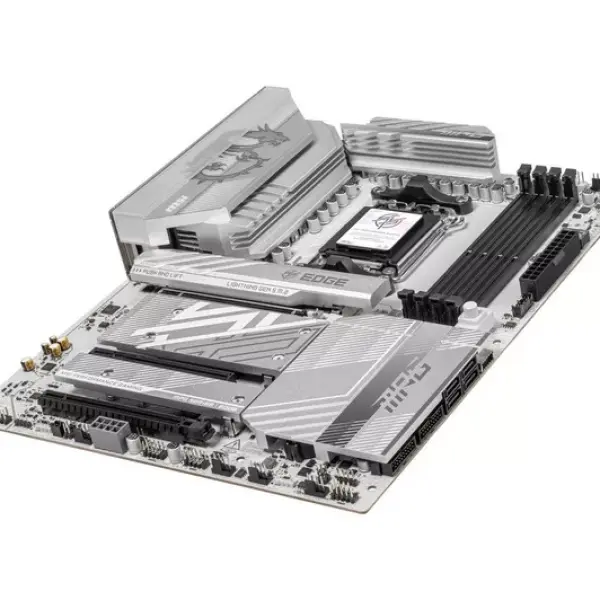

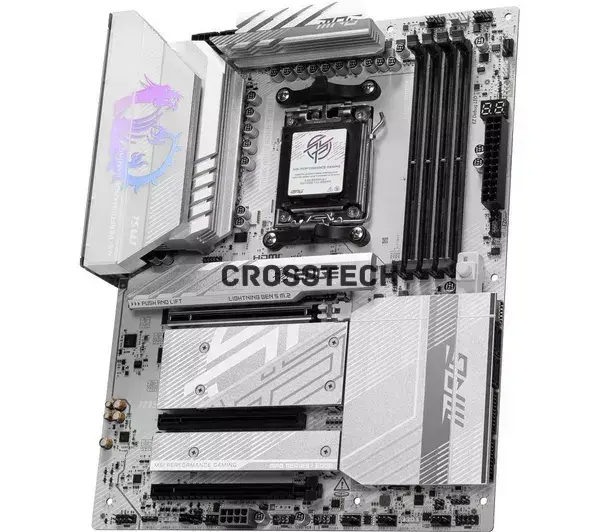

The MSI MPG B850 EDGE TI WIFI is a premium ATX motherboard designed for AMD Ryzen 7000, 8000, and 9000 Series processors. Built on the AMD B850 chipset, it delivers next-generation connectivity, high-speed storage, and powerful VRM design for stable high-performance builds.
With PCIe 5.0 support, dual M.2 Gen5 slots, and DDR5 memory up to 256GB, this board is future-ready for high-end GPUs and ultra-fast SSDs. Integrated WiFi 7 and Realtek 5G LAN provide cutting-edge network performance for gaming and professional workloads.
Advanced thermal solutions including Extended Heatsink Design and M.2 Thermal Frozr Guards ensure stable operation under heavy load.
Ideal for high-end gaming builds, creator workstations, and enthusiast systems in Kenya.
Technical Specifications
🧠 Core Platform
Specification
Details
Form Factor
ATX
Chipset
AMD B850
Socket
AMD AM5
CPU Support
Ryzen 9000 / 8000 / 7000 Series
OS Support
Windows 11
💾 Memory
Specification
Details
Memory Type
DDR5
Slots
4 × UDIMM
Max Capacity
256 GB
Channel
Dual Channel
🎮 Expansion Slots
Slot Type
Configuration
PCIe 5.0
1 × x16
PCIe 4.0
1 × x16
PCIe 3.0
1 × x16
💽 Storage
Storage Type
Configuration
M.2 Gen5
2 × (Up to 128 GB/s)
M.2 Gen4
2 ×
SATA III
4 × (6 Gb/s)
🌐 Connectivity
Feature
Details
WiFi
WiFi 7
LAN
Realtek 8126 5G LAN
Bluetooth
5.4
HDMI
1 × HDMI 2.1
DisplayPort
1 × DP 1.4
🔌 USB Ports
Type
Quantity
USB Type-C (20Gbps)
1
USB Type-C (10Gbps)
2
USB Type-A (10Gbps)
3
USB Type-A (5Gbps)
5
USB 2.0
8
🔊 Audio
Specification
Details
Codec
Realtek ALC897
Audio Channels
7.1 HD Audio
❄ Cooling & Thermal Features
Extended heatsink design
M.2 Thermal Frozr Guards
EZ PCIe release
Smart Fan Control
MOSFET thermal pads
Pump fan support
Fan Headers:
CPU Fan ×1
System Fan ×6
Pump Fan ×1
🔋 Power Connectors
24-pin ATX Power ×1
8-pin CPU Power ×2
8-pin PCIe Power ×1
🛠 Debug & Utilities
EZ Debug LED
Clear CMOS Button
Flash BIOS
EZ Front Panel Cable
📦 Box Contents
MSI MPG B850 EDGE TI WIFI Motherboard
WiFi Antenna
SATA Cables
M.2 Clip Package
ARGB Extension Cable
Quick Installation Guide
📏 Physical Dimensions
Height: 7.3 cm
Width: 24.3 cm
Depth: 30.4 cm
Weight: Approx. 1.2 kg
🎯 Ideal For
High-end Ryzen gaming builds
RTX 4080 / 4090 builds
DDR5 performance systems
Future-proof PC builds
